Practice 4: ER Model
Question
Create an ER model for the Tiny College(TC)
Identity the
entites
Describe the
attributes
of each entity
Describe the type(s) of
relationship
(s) between entities

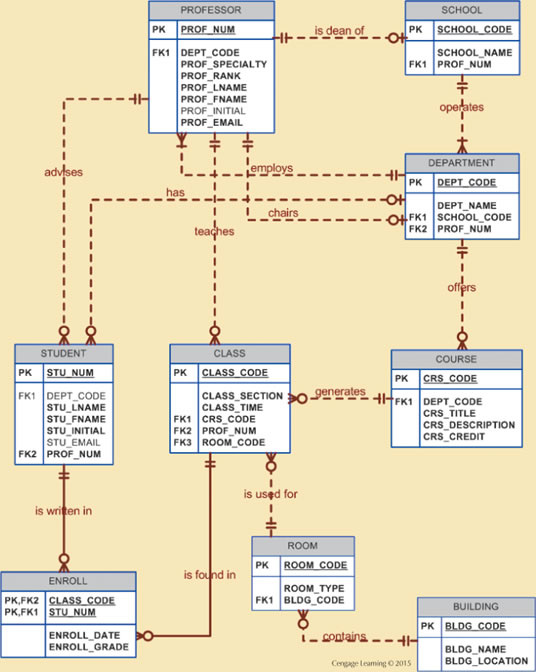

Draw the ERD in Chen's model
Extra: Draw database schema in Crow's Foot model
Hint:
The entities:
SCHOOL, DEPARTMENT, COURSE,
CLASS, PROFESSOR, STUDENT, BUILDING, ROOM, ENROLL
(the
associative entity between STUDENT and CLASS)
1:
The entities:

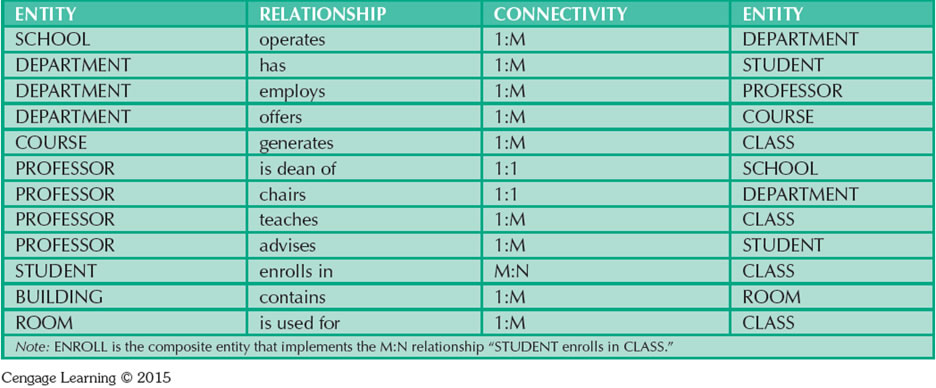

SCHOOL, COURSE, DEPARTMENT, CLASS, PROFESSOR, STUDENT, BUILDING, ROOM, ENROLL (the associative entity between STUDENT and CLASS)
2~3:
3:
4:
